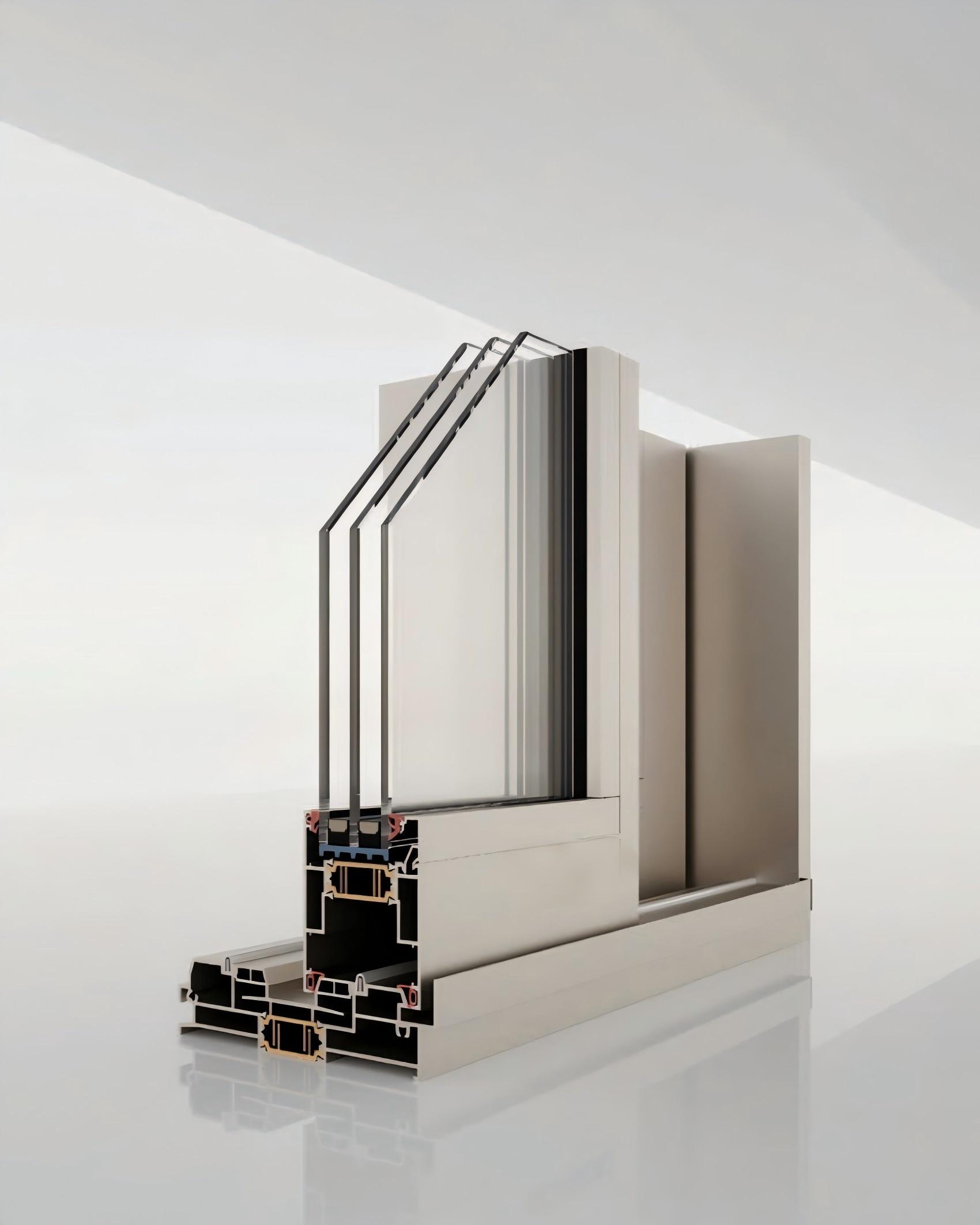

The TS150 is a high-performance aluminium lift & slide door system with a 150mm main profile depth, engineered for expansive glazed openings up to 3.2m wide and 2.8m tall. Its innovative lifting mechanism allows the sliding sash to glide effortlessly on concealed rollers, then lower onto a continuous perimeter seal for exceptional airtightness and thermal performance.
Designed for seamless indoor-outdoor transition, the TS150 accepts double or triple glazing up to 54mm and delivers industry-leading U-values down to 0.9 W/m²K. The ultra-low threshold option provides barrier-free access, making it the ideal choice for luxury residential villas, hotels, and resort applications.
| PERFORMANCE | Value |
|---|---|
| Thermal Insulation (Uf) | 0.9 – 1.3 W/m²K |
| Acoustic Insulation (Rw) | 42 dB |
| Airtightness | Class 4 |
| Watertightness | E750 |
| Windload Resistance | C5 |
| Parameter | Value |
|---|---|
| Frame Depth | 150 mm |
| Glazing Capacity | 24 – 54 mm |
| Max Panel Width | 3200 mm |
| Max Panel Height | 2800 mm |
| Max Panel Weight | 400 kg |
