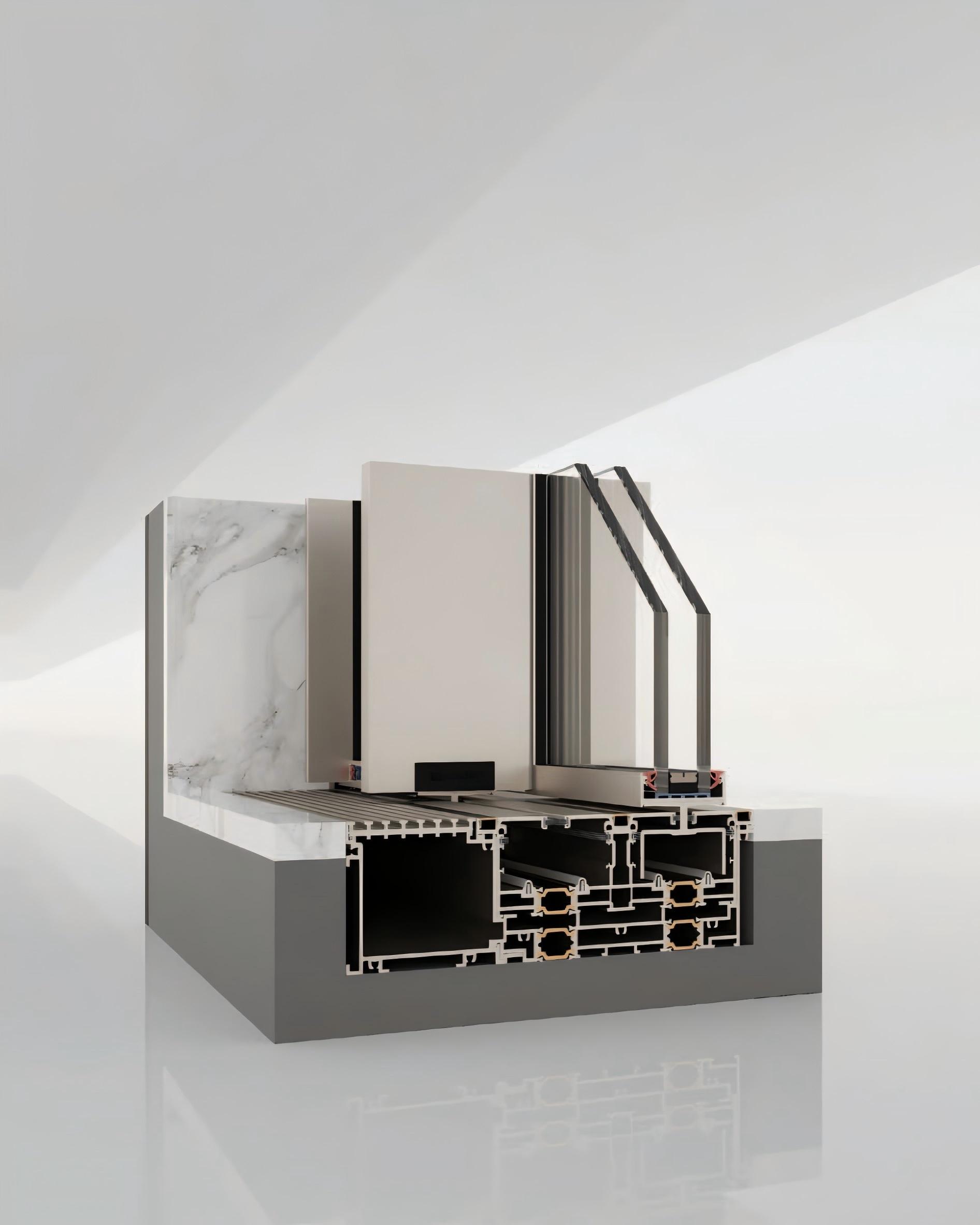

The Infinity 19 is a premium panoramic sliding door system engineered with a 190mm basic interlock frame depth, designed for expansive glazed openings that blur the boundary between interior and exterior. Its ultra-slim sightlines and smooth rolling mechanism deliver an uninterrupted viewing experience.
Available in single, double, and triple track configurations, the Infinity 19 supports panels up to 3.2m in height and 2.5m in width. The concealed track system and low-threshold design provide barrier-free access while maintaining superior weather performance.
Panoramic Design: Ultra-narrow interlock frame profiles maximize glass area for uninterrupted views.
Heavy-Duty Performance: Supports sliding panels up to 400 kg with smooth, quiet operation.
190mm System Depth: Deep frame profile provides exceptional structural rigidity and thermal performance.
Multi-Track Configurations: Single, double, and triple track options for maximum design flexibility.
Low Threshold: Barrier-free access with integrated drainage and thermal break.
| Parameter | Value |
|---|---|
| Thermal Insulation | 1.4 W/m²K |
| Acoustic Insulation | 32 dB |
| Airtightness | 4 |
| Watertightness | E750 |
| Windload | C5/B5 |
| Parameter | Value |
|---|---|
| Frame Depth | 190 mm |
| Glass Thickness | Up to 44 mm |
