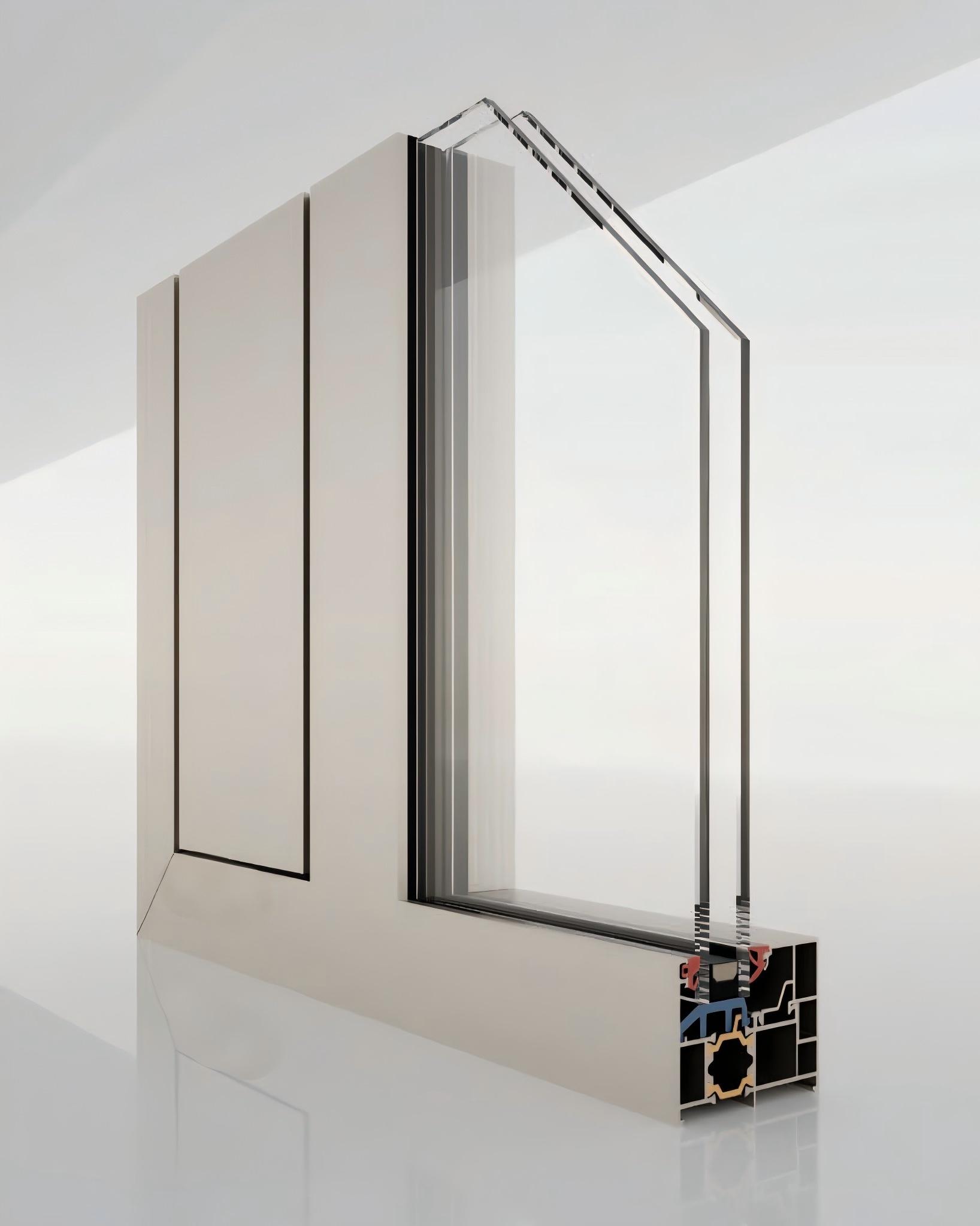

The VW65 is a slim, opaque, floor-to-ceiling side-hung vent platform engineered with a 65mm basic profile depth. Designed to decouple building daylighting from fresh air requirements, it allows architects to introduce sweeping expanses of panoramic fixed glass while ensuring rapid natural ventilation.
Available in ultra-narrow face widths of 250mm, 300mm, and 330mm, the VW65 can remain safely open overnight or during summer months for continuous passive cooling. When closed, its heavily insulated core forms a robust climate and dust barrier.
| PERFORMANCE | Value |
|---|---|
| Thermal Insulation | 2.0 W/m²K |
| Acoustic Insulation | 36 dB |
| Airtightness | 9a |
| Watertightness | 4 |
| Windload | C5/B5 |
| Parameter | Value |
|---|---|
| Wall Thickness | 1.8 mm |
| Frame Depth | 65 mm |
| T Profile, min width | 73 mm |
| Panel Thickness | 65 mm |
| Sash Weight, max | 70 kg |
