uPVC High Performance Window
UW70 uPVC High Performance
Casement Window — Outward Opening
The UW70 is a high-performance uPVC casement window system engineered to deliver exceptional thermal efficiency, weather protection, and long-term durability for residential and light commercial applications. Featuring a robust 70mm multi-chamber profile and outward-opening configuration, the UW70 combines modern aesthetics with outstanding performance.
Designed to meet the demands of contemporary living, the UW70 offers excellent energy efficiency, enhanced security, and low maintenance requirements while providing a wide range of styles, colours, and glazing options to suit any architectural design. It is an ideal solution for new-build developments, replacement projects, and renovation schemes.
Key Features & Technical Benefits

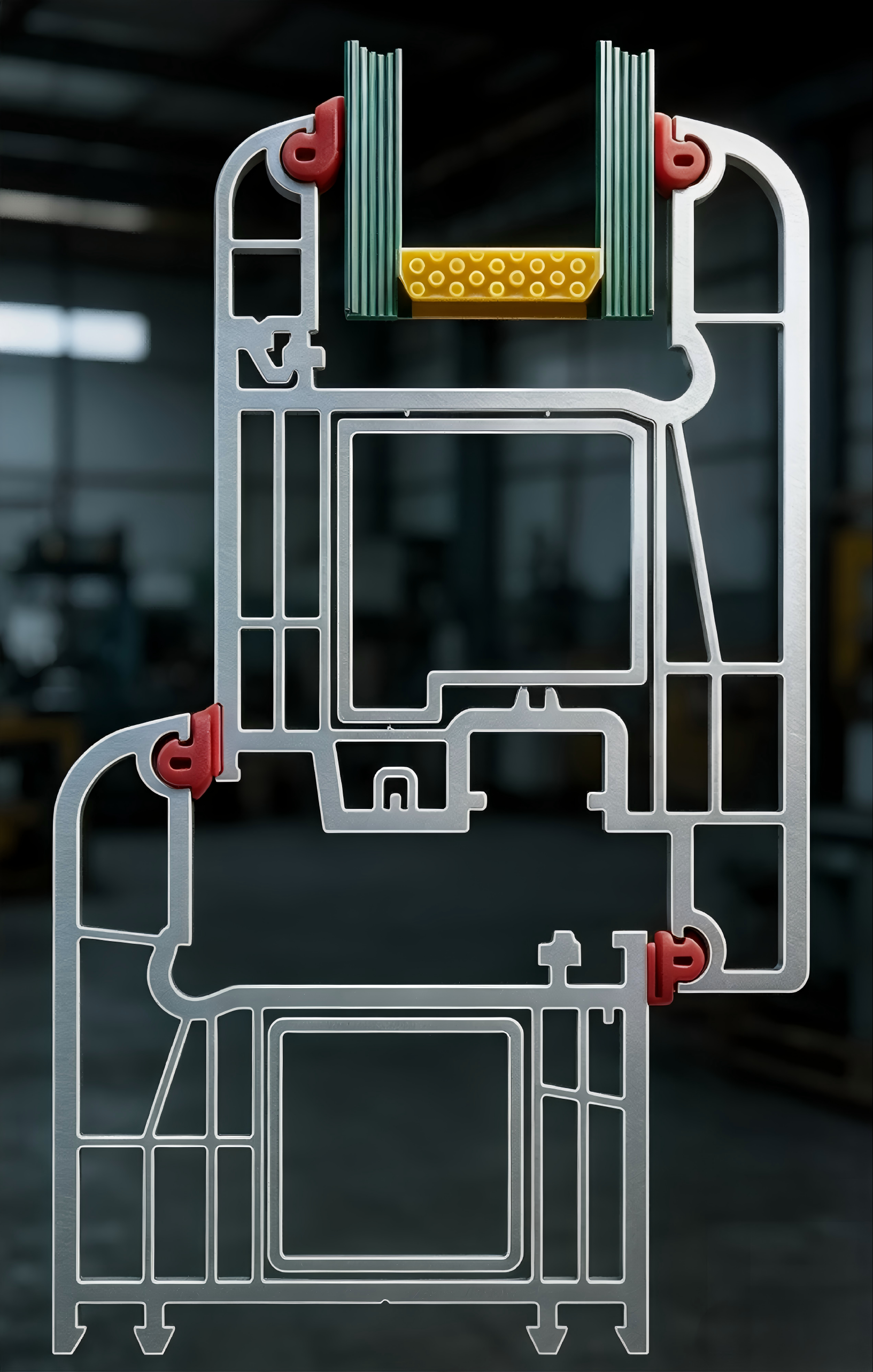

High-Efficiency Multi-Chamber Profile: The advanced 70mm multi-chamber frame construction helps minimise heat loss and improve thermal insulation, creating more comfortable living environments and reducing energy consumption.

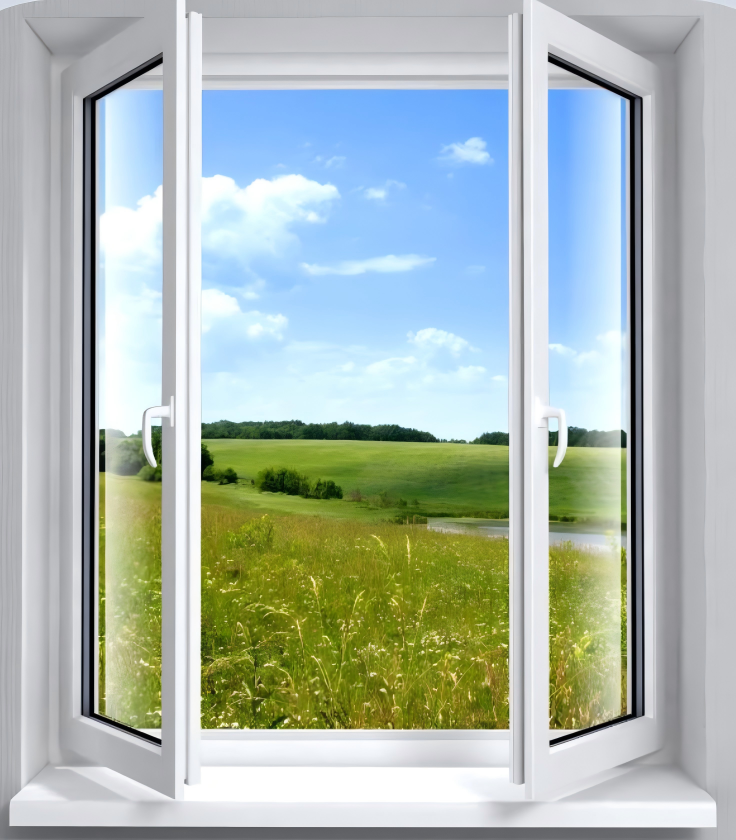

Outward Opening Casement Design: The outward-opening sash configuration maximises ventilation while maintaining excellent weather resistance and ease of operation.
Outstanding Thermal Performance: Compatible with energy-efficient double and triple glazing solutions to achieve excellent U-values and support compliance with modern building regulations.
Superior Weather Resistance: Engineered sealing systems provide exceptional protection against air infiltration, water penetration, and adverse weather conditions.
Enhanced Security: Fitted with multi-point locking mechanisms and reinforced profile sections to provide increased security and peace of mind.
| PERFORMANCE | Value |
|---|
| Thermal Insulation | 0.9 ~ 1.3 W/m²K |
| Acoustic Insulation | 42 dB |
| Airtightness | Class 4 |
| Watertightness | Up to Class E1200 |
| Windload | C5/B5 |
| Parameter | Value |
|---|
| Wall Thickness | 2.0 mm |
| Frame Depth | 70 mm |
| Sightline Width | 67 mm |
| Panel Thickness | 25 ~ 44 mm |
| Sash Weight, Max | 40 kg |
