Thermally Insulated Window
TW65 Thermally Insulated
Flush Casement Window

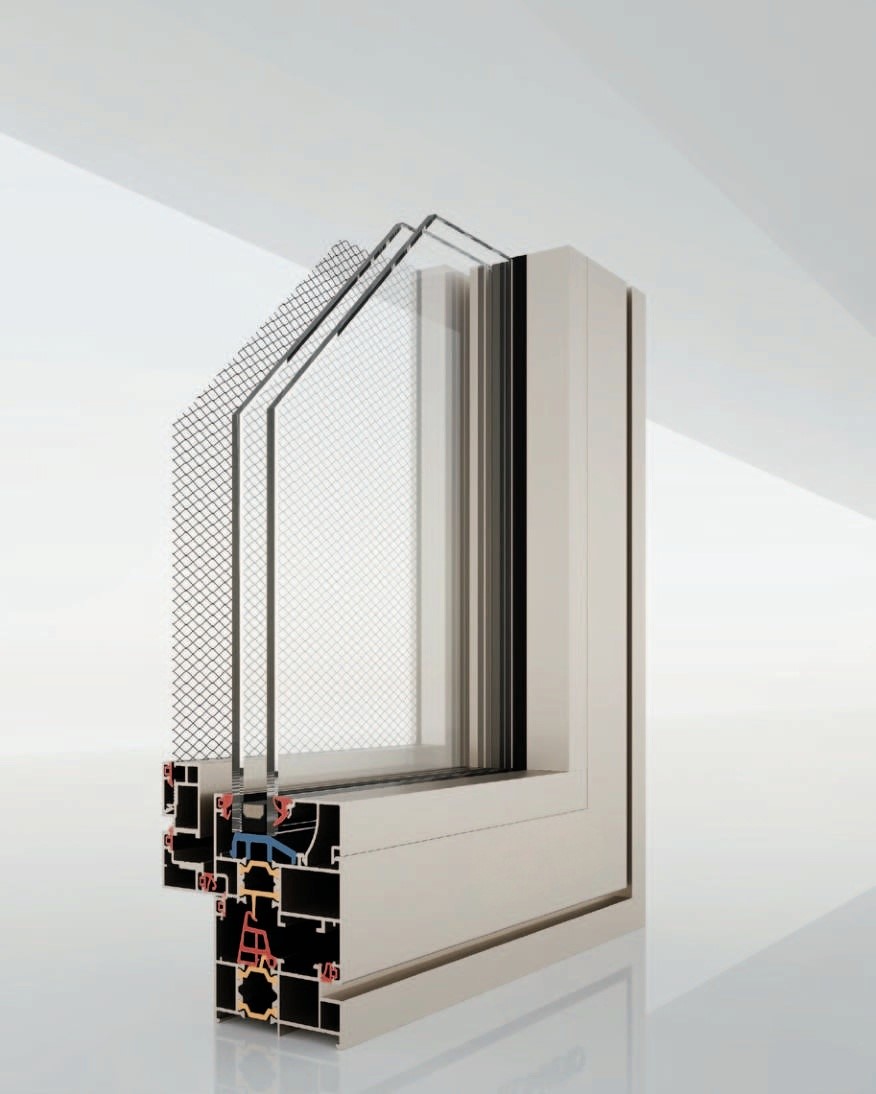

The TW65mm Thermally Insulated Flush Casement Window System delivers a highly versatile architectural solution designed to meet demanding building envelope requirements. Engineered with a perfectly flush sash-to-frame exterior design, this premium aluminum construction seamlessly combines clean, minimalist aesthetics with robust energy efficiency.
The system offers an array of versatile opening types—including side-hung, turn-and-tilt, and bottom-hung toplights. For optimal occupant well-being, the system introduces a dedicated option for an externally installed inswing flyscreen, making it a benchmark for ambitious, human-centric architecture.
Technical Overview
Premium Flush Casement Aesthetic: Features a fully flush exterior profile design with narrow face widths, delivering a sleek, uninterrupted architectural sightline.
Optimized Thermal Performance: Multi-cavity internal thermal insulation barriers radically reduce heat transfer, maintaining indoor micro-climate stability and lowering AC energy consumption.
Inswing Flyscreen Innovation: Engineered with dedicated options for an externally installed inswing flyscreen, allowing continuous insect-free natural ventilation while maintaining internal clearance.
Unmatched Opening Versatility: Accommodates extensive opening configurations, including turn/tilt, side-hung, bottom-hung variations.
Heavy-Duty Structural Profiles: Backed by a comprehensive range of corner, structural, symmetrical, and asymmetrical mullions to securely handle extreme regional wind loads.
| PERFORMANCE | Value |
|---|
| Thermal Insulation | 2.0 W/m²K |
| Acoustic Insulation | 41 dB |
| Airtightness | 9a |
| Watertightness | 4 |
| Windload | C5/B5 |
| Parameter | Value |
|---|
| Wall Thickness | 1.8 mm |
| Frame Depth | 65 mm |
| T Profile, min width | 75 mm |
| Glass Thickness | 25 ~ 40 mm |
| Sash Weight, max | 70 kg |
