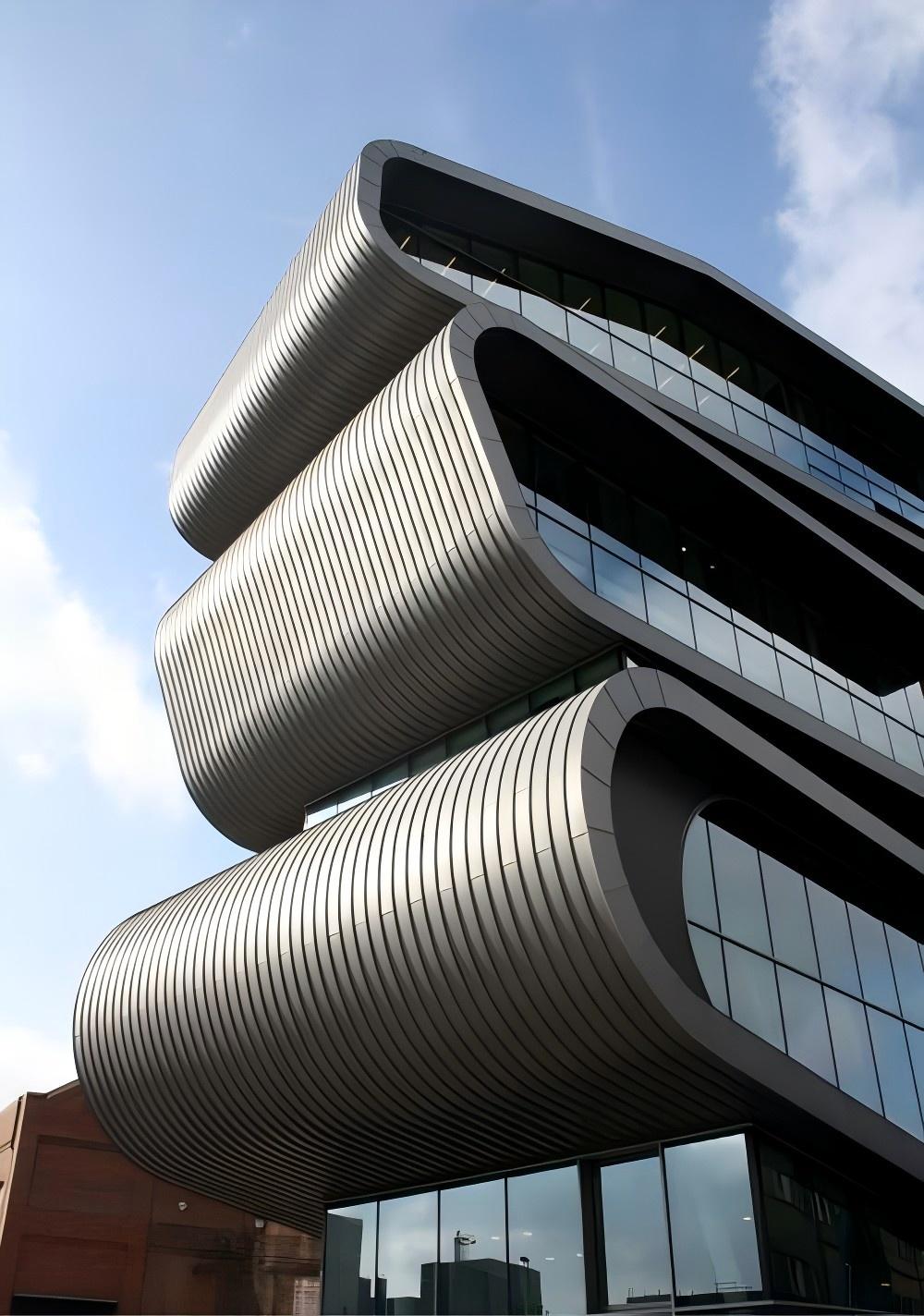

The Standing Seam Portfolio defines the quintessential expression of continuous architectural metal cladding. Engineered for projects demanding clean, uninterrupted vertical lines, the concealed clip-fixed standing seam profile delivers a flawless exterior envelope without exposed fasteners.
Fully engineered for rainscreen and ventilated façade applications, each panel is precision-roll-formed from high-grade aluminium or steel substrates. The concealed fixing methodology eliminates thermal bridging while allowing free thermal movement, ensuring long-term structural integrity across diverse climatic conditions.
| PERFORMANCE | Value |
|---|---|
| Thermal Insulation | 0.15 W/m²K (insulated) |
| Fire Classification | A1 / A2-s1,d0 |
| Windload Resistance | Up to 2.4 kN/m² |
| Watertightness | CWCT Class B (Severe) |
| Parameter | Value |
|---|---|
| Coverage Width | 300 / 400 / 500 mm |
| Panel Length | Custom up to 15,000 mm |
| Material Thickness | 0.7–1.2 mm (Al) / 0.6–1.0 mm (Steel) |
| Seam Height | 25 / 38 / 50 / 65 mm |
