Profile Entrance DoorsThe Grand Horizon
100

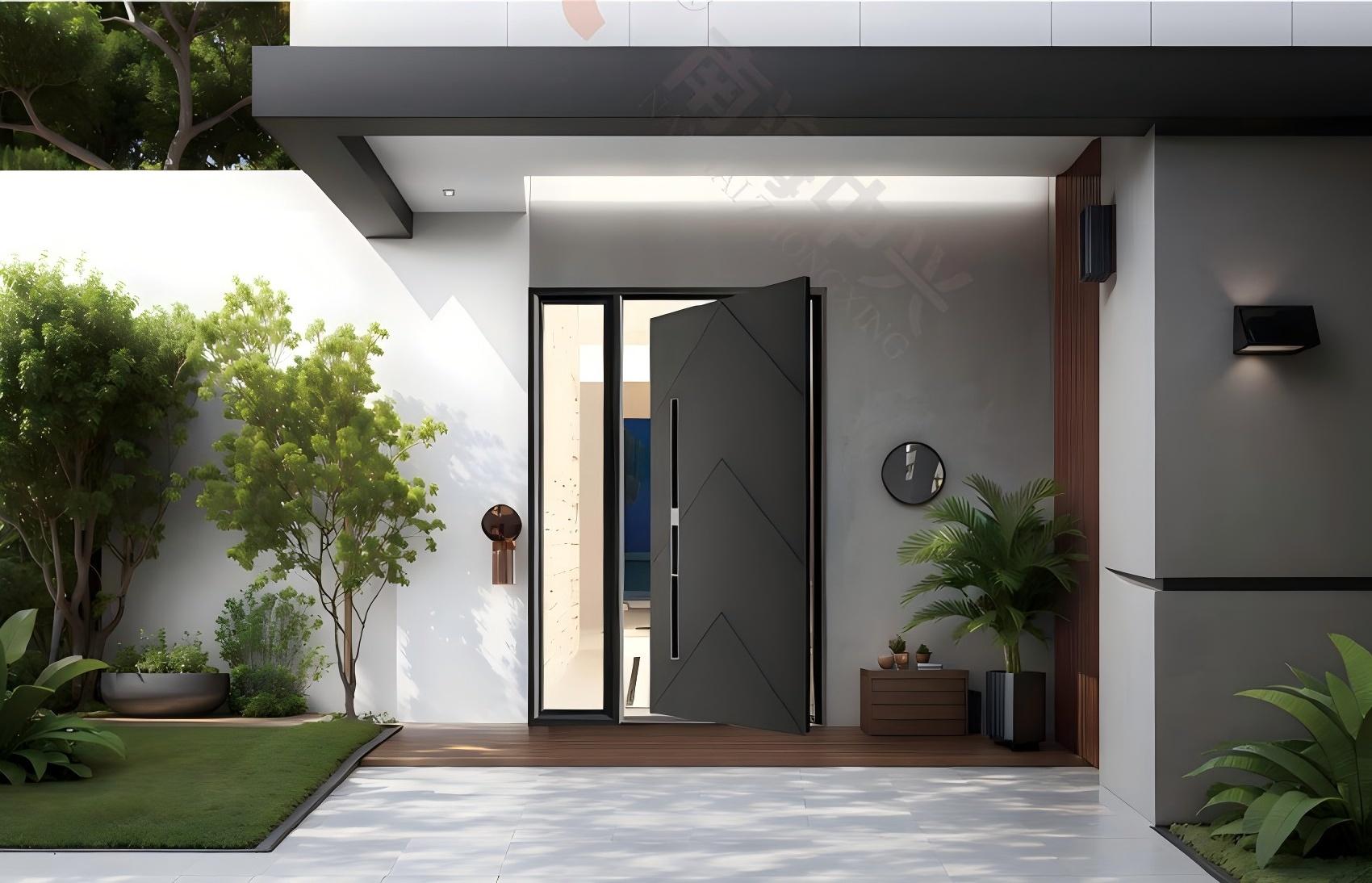

The Grand Horizon 100 represents monumental entrance design with a massive 100mm deep structural profile envelope engineered for luxury self-builds and grand coastal villas. A floor-mounted pivot spindle carries massive door leaves effortlessly, creating a striking monolithic wall plane with dual-sided co-planar design.
Featuring an architectural pivot entrance system with precision-milled offset floor spindle, the GH100 supports door leaves up to 1.5m wide × 3.2m high. Integrated smart-home biometrics and hydraulic soft-close dampening deliver the ultimate in luxury entrance performance.
Technical Overview
Grand Axis Heavy-Duty Pivot: Precision-milled offset floor spindle enables effortless operation for monumental door leaves up to 1.5m × 3.2m with dual-sided co-planar flush aesthetics.

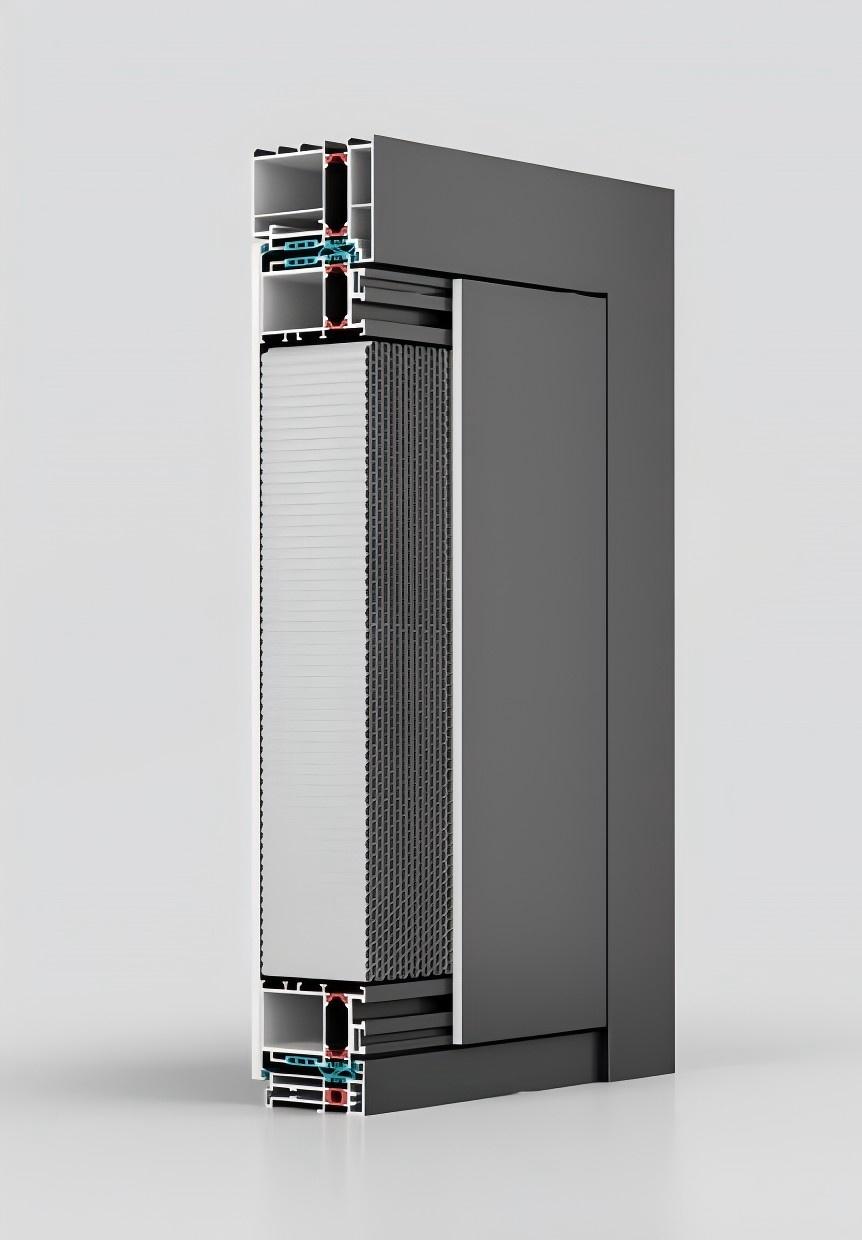

100mm Deep-Gauge Chassis: Immense torsional stability with absolute planar flatness under extreme wind loads, providing unparalleled structural performance for oversized entrance doors.
Elite Multi-Cavity Thermal Core: U-Value 0.9 W/m²K via high-density insulating foam within a multi-chamber polyamide thermal break for superior energy efficiency.
Automated Weather-Lockdown Drop Seals: Heavy-duty mechanical drop seals with multi-tier EPDM gaskets engage automatically upon closure for complete weather protection.
| PERFORMANCE | Value |
|---|
| Thermal Insulation | 0.9 W/m²K |
| Acoustic Insulation | 40 dB |
| Airtightness | Class 3 / Class 4 |
| Watertightness | Class 7A / 8A |
| Wind Resistance | Class CE2400 |
| Parameter | Value |
|---|
| Frame Depth | 100 mm |
| Max Door Width | 1500 mm |
| Max Door Height | 3200 mm |
| Operation | Pivot (Floor-Mounted) |
| Cycle Tested | 500,000 Cycles |
We Are Here To Help You from Design to Build
Connect with our engineering team for detailed technical submittals and project-specific quotations.
