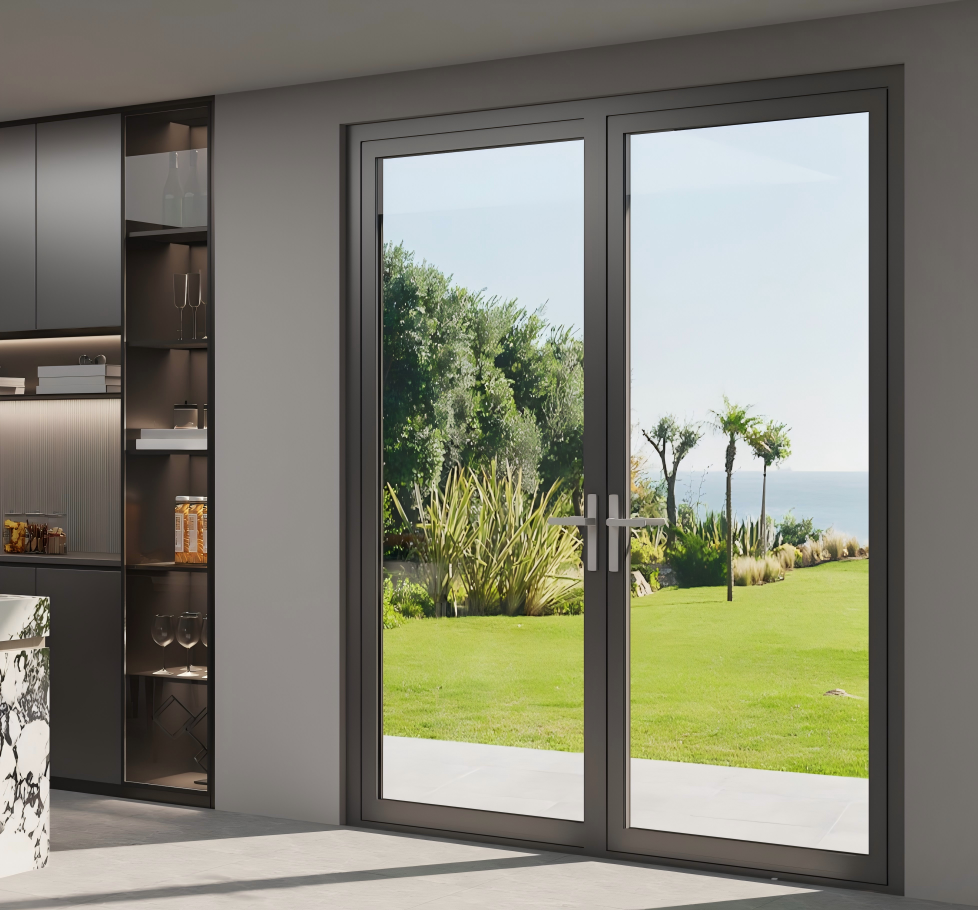

The TD75 is a highly thermally insulated aluminium door system engineered to deliver outstanding energy efficiency, security, and durability for modern residential and commercial developments. Featuring a robust 75mm thermally broken profile and available in both inward and outward opening configurations, the TD75 provides the ideal balance between architectural aesthetics and high-performance building envelope requirements.
Designed for demanding environments and contemporary architecture, the TD75 offers exceptional weather resistance, enhanced acoustic insulation, and premium design flexibility, making it suitable for luxury homes, apartments, commercial buildings, healthcare facilities, and educational developments.
| PERFORMANCE | Value |
|---|---|
| Thermal Insulation | 1.9 W/m²K |
| Acoustic Insulation | 42 dB |
| Airtightness | 7a |
| Watertightness | 4 |
| Windload | C5/B5 |
| Parameter | Value |
|---|---|
| Wall Thickness | 2.2 mm |
| Frame Depth | 75 mm |
| Sash Depth | 80 mm |
| Max Leaf Height | 2900 mm |
| Max Leaf Width | 1300 mm |
| Glass Thickness | 25 ~ 55 mm |
| Sash Weight, Max | 120 kg |
